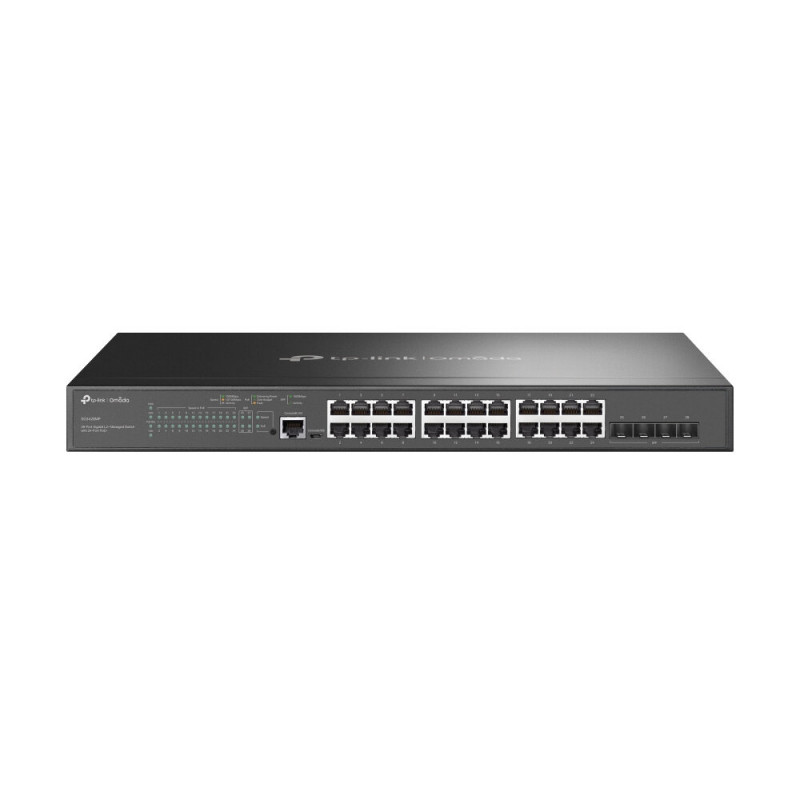

TP-LINK TL-SG3428 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots

TP-LINK TL-SG3428 24-Port Gigabit L2+ Managed Switch

The TP-LINK TL-SG3428 is a high-performance, 24-port Gigabit L2+ managed switch ideal for demanding network environments. With its robust feature set, including advanced security and QoS capabilities, this switch is perfect for IT professionals, network administrators, and businesses requiring a reliable and scalable solution for their wired infrastructure. Benefit from seamless integration with TP-LINK's Omada SDN platform for centralized cloud management and effortless network control.

Features

• 24 Gigabit RJ45 ports and 4 Gigabit SFP slots for high-speed connectivity.
• Seamless integration with TP-LINK's Omada SDN platform for centralized cloud management, Zero-Touch Provisioning (ZTP), and intelligent monitoring.
• Advanced L2+/L3 features including static routing for optimized internal traffic flow.
• Comprehensive security features: IP-MAC-Port Binding, ACLs, Port Security, DoS defense, Storm control, DHCP Snooping, 802.1X, and Radius Authentication.
• Optimized voice and video applications with L2/L3/L4 QoS and IGMP snooping.
• Flexible management options: Web, CLI, SNMP, RMON, and dual image support.
• IPv6 support for future-proof network infrastructure.

Specifications

• Interface: 24 x 10/100/1000 Mbps RJ45 Ports, 4 x Gigabit SFP Slots, 1 x RJ45 Console Port, 1 x Micro-USB Console Port
• Fan Quantity: Fanless
• Power Supply: 100-240 V AC~50/60 Hz
• Dimensions: 440 x 180 x 44 mm (W x D x H)
• Mounting: Rack Mountable
• Max Power Consumption: 19.9 W (220 V/50 Hz)
• Max Heat Dissipation: 67.73 BTU/h (220 V/50 Hz)
• Switching Capacity: 56 Gbps
• Packet Forwarding Rate: 41.66 Mpps
• MAC Address Table: 16K
• Packet Buffer Memory: 12 Mbit
• Jumbo Frame: 9 KB
• Operating Temperature: 0–45°C (32–113°F)
• Storage Temperature: -40–70°C (-40–158°F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
• Certifications: CE, FCC, RoHS
