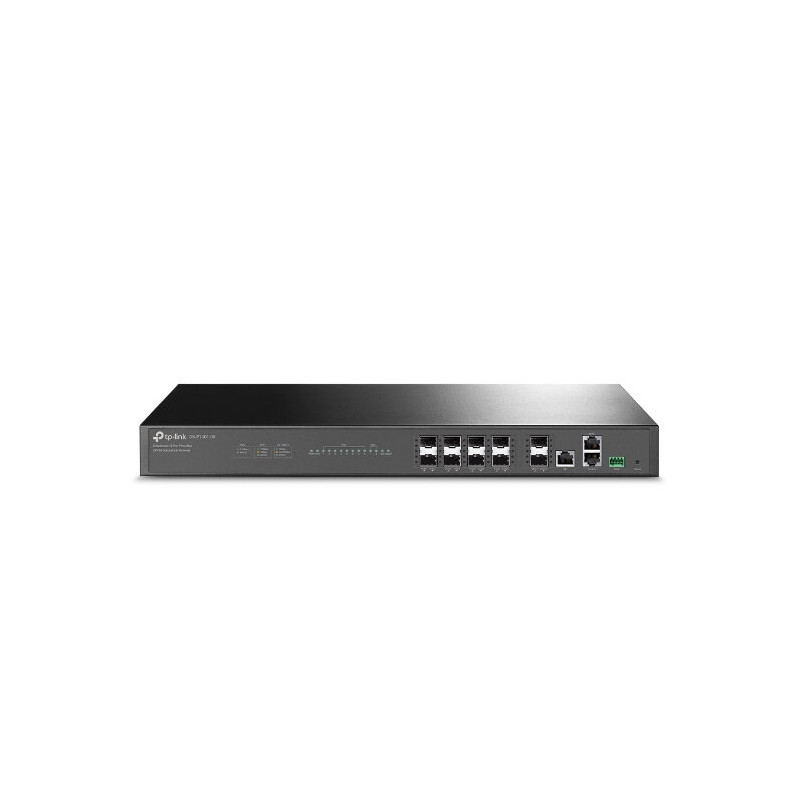

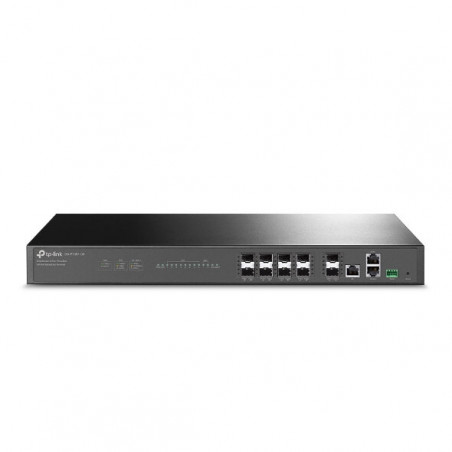

TP-LINK DS-P7001-08 8-Port GPON Optical Line Terminal

TP-LINK DS-P7001-08 DeltaStream 8-Port GPON Optical Line Terminal

The TP-LINK DS-P7001-08 DeltaStream is a high-performance, carrier-grade GPON Optical Line Terminal designed for demanding network deployments. Ideal for network operators, service providers, and businesses requiring robust and scalable fiber optic connectivity, this pizza-box sized unit offers unparalleled reliability and centralized management capabilities. Its compact design and extensive feature set make it a versatile solution for a wide range of applications.

Features

• Eight GPON ports with a 1:128 splitting ratio, supporting up to 1024 ONTs per device.
• High-speed uplink connectivity with two 10GE SFP+ ports and one Gigabit Ethernet uplink port.
• Dual redundant hot-swappable power supplies (AC and DC) for continuous operation and maximum uptime.
• Comprehensive Layer 2 and advanced Layer 3 functionalities to meet diverse network requirements.
• Centralized management via DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI for simplified configuration and maintenance.
• Advanced L2/L2+ features including Static Routing and IGMP Snooping for optimized network performance.
• Compact, rack-mountable design for flexible deployment.

Specifications

• Brand: TP-LINK
• Model: DS-P7001-08
• GPON Ports: 8
• Maximum ONTs per Device: 1024 (with 1:128 splitting ratio per port)
• Uplink Ports: 2 x 10GE SFP+, 1 x Gigabit Ethernet
• Power Supplies: Dual redundant, hot-swappable (AC and DC)
• AC Input: 100V~240V 50/60Hz
• DC Input: 38.4V~72V
• Management: DeltaStream PON Management System (DPMS), SNMP, CLI, Web UI
• Layer 2/3 Features: Static Routing, IGMP Snooping, and more.
