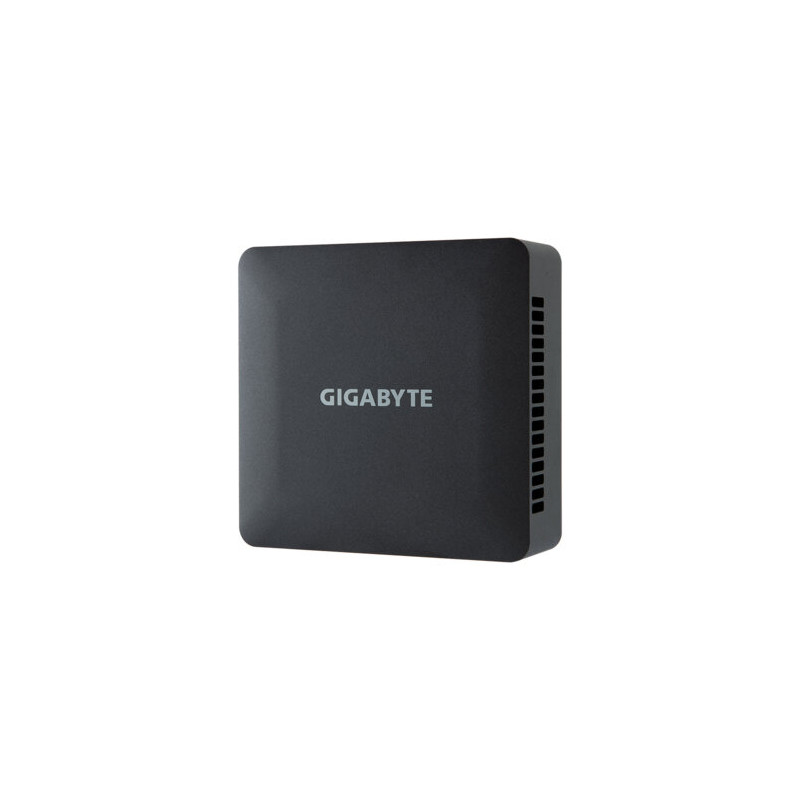

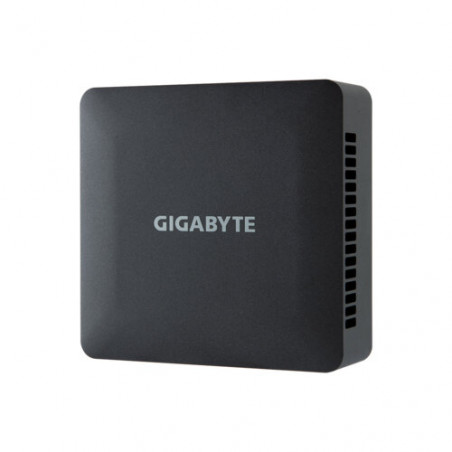

GIGABYTE GB-BRI7H-1355 Intel Core i7-1355U Barebone Kit

GIGABYTE GB-BRI7H-1355 Barebone Kit

The GIGABYTE GB-BRI7H-1355 Barebone Kit delivers uncompromising performance in a compact and stylish design. Ideal for tech enthusiasts, professionals, and digital signage applications, this mini PC packs a powerful punch without sacrificing elegance. Upgrade your workspace with a system built for speed, efficiency, and seamless multitasking, all within a remarkably small footprint.

Features

• Powerful 13th Gen Intel Core i7-1355U processor (up to 5.0GHz)
• Compact and versatile design, perfect for various applications
• Supports up to four independent 4K displays with HDR 10
• Dual DDR4 SO-DIMM slots (up to 64GB of RAM)
• Multiple storage options: one M.2 2280 slot (PCIe Gen4 x4/SATA3) and one 2.5" SATA slot
• Integrated Intel AX203 Wi-Fi 6 and Bluetooth 5.2 for fast and reliable connectivity
• 2.5 GbE LAN for high-speed wired networking
• VESA mountable for flexible placement

Specifications

• CPU: 13th Gen Intel Core i7-1355U Processor (10 Cores, 12 Threads, 12MB Cache, up to 5.0GHz P-Core Turbo, 15W TDP)
• Memory: 2 x SO-DIMM DDR4 slots, 3200MHz, Max 64GB
• Graphics: Intel Iris Xe Graphics (96EU, 1.3GHz)
• Networking: 2.5 GbE LAN (Intel i226V), Intel AX203 Wi-Fi 6 (802.11ax), Bluetooth 5.2
• Storage: 1 x M.2 2280 slot (PCIe Gen4 x4 / SATA3), 1 x 2.5" SATA slot (9.0mm thick)
• Video Outputs: 2 x HDMI 2.1 (HDCP 2.2, Max Resolution 3840x2160@60Hz), 2 x USB Type-C (DP 1.4a Alt Mode, Max Resolution 3840x2160@60Hz)
• Audio: Realtek ALC269 HD audio
• Front I/O: 1 x Headphone/Microphone combo jack, 2 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0 Type-A, 1 x Power Button
• Rear I/O: 1 x 2.5 GbE RJ45, 2 x HDMI 2.1, 2 x USB 3.2 Gen 2 Type-C with DP Alt Mode, 1 x Kensington Lock Slot, 1 x DC-In
• Power Supply: Input: AC 100-240V, Output: DC 19.5V / 6.92A, 135W
• Dimensions: 124 x 120 x 49.7 mm
• VESA Mounting: Supports 75 x 75 and 100 x 100 mm (VESA bracket sold separately)
• Operating System Support: Windows 11 64-bit, Windows 10 64-bit
• Operating Temperature: 0°C to +35°C
• Storage Temperature: -20°C to +60°C
