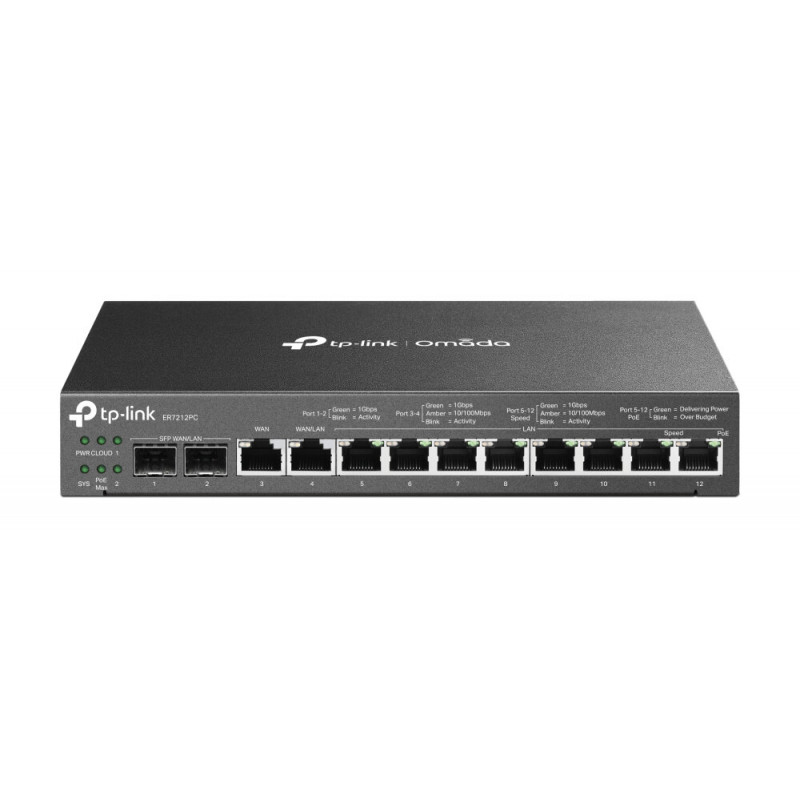

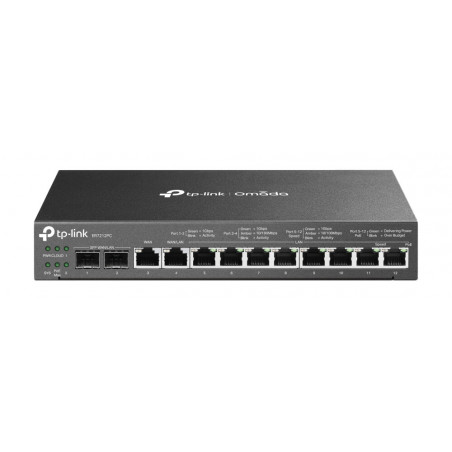

TP-LINK ER7212PC 12-Port Gigabit VPN Router with PoE Switch and Omada Controller

TP-LINK ER7212PC Omada Gigabit VPN Router

The TP-LINK ER7212PC Omada Gigabit VPN Router is a powerful and versatile networking solution ideal for tech-savvy professionals, small businesses, and home users requiring advanced network management and robust security. This 3-in-1 device seamlessly integrates a high-performance router, a PoE+ switch, and an Omada SDN controller, eliminating the need for multiple devices and simplifying network administration. Benefit from streamlined setup, centralized management, and enhanced security features, all within a compact and fanless design.

Features

• 3-in-1 Functionality: Combines a Gigabit router, 8-port PoE+ switch (110W budget), and Omada SDN controller in a single unit.
• High-Performance Hardware: Powered by a dual-core 1.2 GHz CPU and 1GB DDR3 memory for exceptional processing power and smooth network operation.
• Multiple WAN Ports: Offers flexibility with up to four WAN ports (2 Gigabit SFP, 1 Gigabit RJ45, and 1 Gigabit RJ45/LAN) for load balancing and redundancy.
• Centralized Management: Easily manage your network via the intuitive Omada app or web interface, including remote access and cloud connectivity.
• Robust VPN Support: Secure your network with support for IPsec, OpenVPN, L2TP, and PPTP VPN protocols, acting as both client and server (up to 10 VPN servers).
• Advanced Security: Includes a powerful firewall, IP/MAC/URL/Keyword filtering, VLAN support, IP-MAC binding, and DoS defense to protect against various threats.
• Easy Installation: Compact, fanless design for quiet operation and convenient desktop or wall mounting.
• PoE+ Integration: Power and connect up to eight PoE-supported devices (access points, IP cameras, IP phones) directly through the router, reducing cabling and installation costs.

Specifications

• Brand: TP-LINK
• Model: ER7212PC
• CPU: Dual-Core 1.2 GHz
• Memory: 1GB DDR3
• WAN Ports: 2 x Gigabit SFP WAN/LAN, 1 x Gigabit RJ45 WAN, 1 x Gigabit RJ45 WAN/LAN
• LAN Ports: 8 x Gigabit PoE+ (802.3at/af compliant, 110W total PoE budget)
• VPN Protocols: IPsec, OpenVPN, L2TP, PPTP (Client/Server mode)
• Management: Omada App, Web Interface, Cloud Access
• Security Features: Firewall, IP/MAC/URL/Keyword Filtering, VLAN, IP-MAC Binding, DoS Defense, ALG (FTP, H323, SIP, IPSec, PPTP)
• Dimensions (WxDxH): 226 x 131 x 35 mm
• Power Supply: 53.5VDC/2.43A Adapter
• Operating Temperature: 0–45°C
• Storage Temperature: -40–70°C
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
