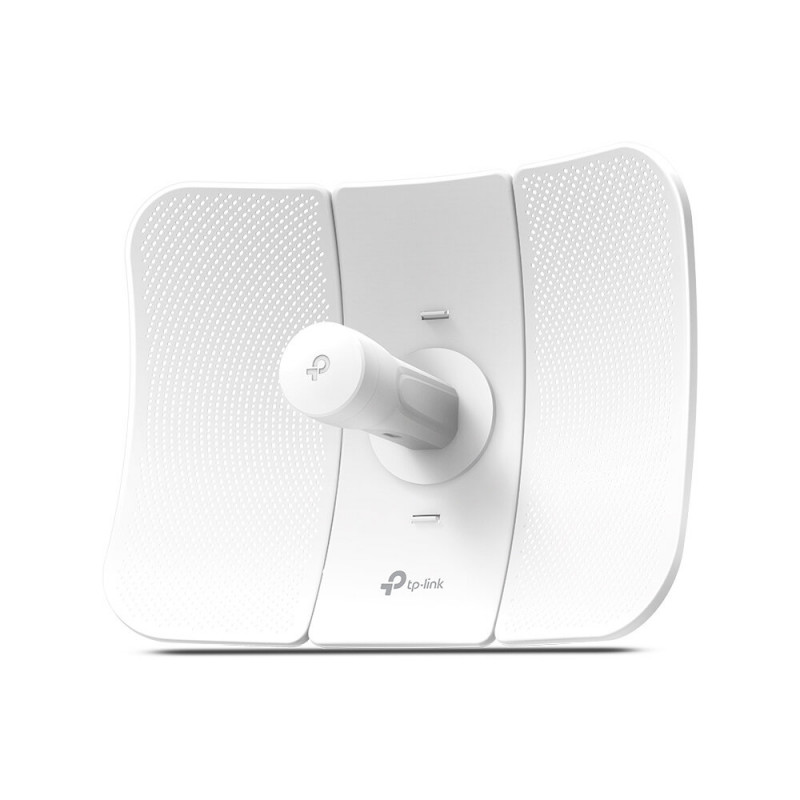

TP-LINK CPE710 5GHz 867Mbps 23dBi Outdoor CPE Wireless Access Point

TP-LINK CPE710 5GHz Outdoor Wireless Access Point

The TP-LINK CPE710 is a high-performance, long-range outdoor wireless access point ideal for professionals and enthusiasts requiring robust and reliable connectivity in challenging environments. This 5GHz device delivers blazing-fast speeds and superior signal strength, making it perfect for point-to-point links, extending Wi-Fi coverage across large distances, or creating secure wireless networks in areas with obstacles or interference. Its weatherproof design and advanced features ensure consistent performance, even in harsh conditions.

Features

• 802.11ac Wi-Fi standard for speeds up to 867Mbps on the 5GHz band.
• 23dBi high-gain directional antenna with excellent beam directivity for long-distance transmission and reduced interference.
• Durable IP65 weatherproof enclosure with 15kV ESD and 6kV lightning protection for all-weather operation.
• Passive PoE support for flexible and convenient installation.
• Pharos Control centralized management system for easy network administration and monitoring.
• 2x2 MIMO technology for improved signal stability and throughput.
• Advanced security features including WPA/WPA2 encryption.

Specifications

• Processor: Qualcomm 750MHz CPU, MIPS 74Kc
• Memory: 128 MB DDR2 RAM, 16 MB Flash
• Interface: 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE), 1 Reset Button
• Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins), Voltage range: 16-27V DC
• Dimensions (W x D x H): 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
• Antenna Gain: 23 dBi
• Antenna Beamwidth: 9° (Azimuth)/7° (Elevation)
• Protection: 15 KV ESD Protection, 6 KV Lightning Protection
• Enclosure: Outdoor PC stabilized plastic, IP65 water and dust proof design
• Wireless Standards: IEEE 802.11a/n/ac
• Wireless Speeds: Up to 867 Mbps (80 MHz, Dynamic), Up to 400 Mbps (40 MHz, Dynamic), Up to 173.4 Mbps (20 MHz, Dynamic)
• Frequency: 5.15–5.85 GHz
• Transmit Power: Max. 27 dBm (Adjustable power by 1dBm)
