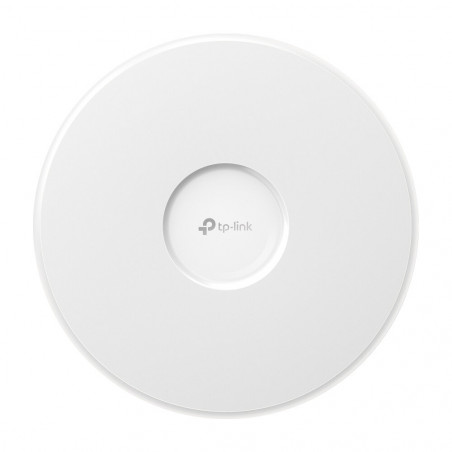

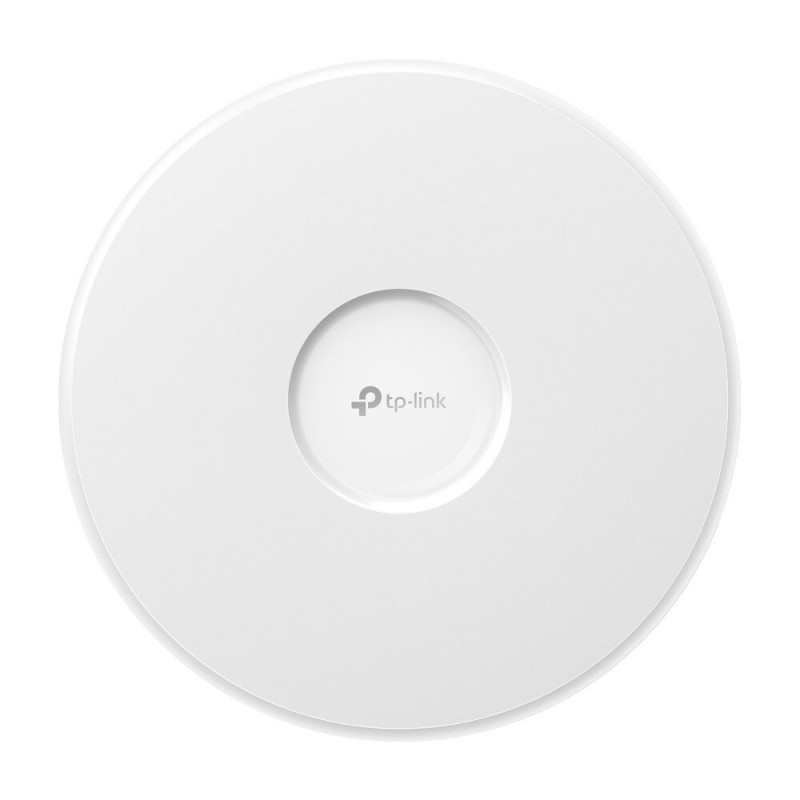

TP-LINK EAP772 Tri-Band Wi-Fi 7 Access Point

TP-LINK EAP772 Wi-Fi 7 Access Point

Elevate your network performance with the TP-LINK EAP772, a cutting-edge tri-band Wi-Fi 7 access point designed for demanding environments. Ideal for businesses, large homes, or tech enthusiasts seeking unparalleled speed and reliability, this ceiling-mount access point delivers blazing-fast connectivity and advanced features to handle even the most bandwidth-intensive applications. Experience seamless streaming, lag-free gaming, and uninterrupted video conferencing with the future of Wi-Fi.

Features

• Tri-band Wi-Fi 7: Experience speeds up to 5760 Mbps on the 6 GHz band, 2880 Mbps on the 5 GHz band, and 574 Mbps on the 2.4 GHz band, eliminating buffering and lag.
• 2.5G Ethernet Port: Maximise your network's potential by utilising the full capabilities of Wi-Fi 7.
• Dedicated 6 GHz Band: Enjoy cleaner, less congested bandwidth for optimal performance.
• 320 MHz Bandwidth: Supports significantly more simultaneous transmissions for increased efficiency and speed.
• Multi-Link Operation (MLO) & Multi-User MIMO (MU-MIMO): Enhance network performance and capacity by utilising multiple frequency bands concurrently.
• Omada Mesh Support: Seamlessly integrate with other Omada devices for whole-home or business coverage.
• AI Roaming: Enjoy intelligent and seamless roaming between access points for uninterrupted connectivity.
• Sleek, Low-Profile Design: Discreetly integrates into ceilings for a clean aesthetic.
• Centralized Management: Easily manage your network through the Omada app or controller.

Specifications

• Interface: 1x 2.5G Ethernet Port
• Power Supply: 802.3at PoE or 12V/2.5A DC
• Max. Power Consumption: 24.05 W (PoE); 20.92 W (DC)
• Dimensions (W x D x H): 220 x 220 x 32.5 mm (8.7 x 8.7 x 1.3 in)
• Antenna: 2.4 GHz: 2 x 3.0 dBi; 5 GHz: 2 x 3.0 dBi; 6 GHz: 2 x 3.0 dBi
• Bluetooth: Bluetooth 5.2
• Mounting: Ceiling/Wall Mounting (Kits Included)
• Coverage: Approximately 140m² (1500 ft²)
• Concurrent Clients: 380+
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Frequency: 2.4 GHz, 5 GHz, and 6 GHz
• Signal Rate: Up to 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)
• Wireless Functions: MLO, 4K-QAM, MU-MIMO, HE320, Mesh, BSS Coloring, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs, Wireless Schedule, Reboot Schedule, QoS (WMM), Rate Limit, Static/Dynamic IP, RADIUS Accounting, MAC Authentication
• Wireless Security: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Captive Portal Authentication, Access Control, MAC Filtering (up to 4,000), Wireless Isolation, VLAN, Rogue AP Detection
• Management Features: Omada App, Centralized Management (Omada Cloud, OC300, OC200, Software Controller), Cloud Access, Email Alerts, LED Control, Management MAC Access Control, SNMP (v1, v2c, v3), System Logging, Web-based Management
• Certifications: CE, FCC, RoHS, IC
